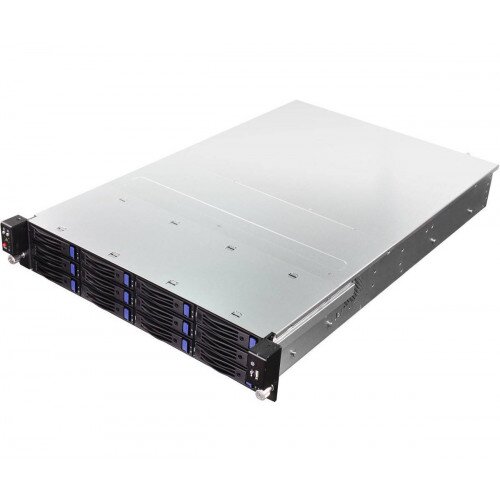

ASRock Rack 2U12L6SW-2TS6 Server
ASRock Rack 2U12L6SW-2TS6 Server Display Gallery Item 1
ASRock Rack 2U12L6SW-2TS6 Server - 2 Display Gallery Item 2
ASRock Rack 2U12L6SW-2TS6 Server - 3 Display Gallery Item 3

ASRock Rack 2U12L6SW-2TS6 Server Price in Pakistan

By: ASRock Rack

Model: 2U12L6SW-2TS6

Sku: O6L5Y24E4P

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Dual socket LGA 2011 supports Intel Xeon Processor E5-1600/2600/4600 & v2 Series
  • 16 x DIMM DDR3 1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 512GB
  • 2 x PCIe 3.0 x16
  • 12 x 3.5" Hot-swap SAS2/SATA3 Drive Bays & 6x 2.5" Hot-swap SATA3 Drive Bays
  • Intel X540 support 2x 10GBase-T
  • ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  • 4 x 8038 system Fan
  • 650W Redundant PSU, Gold
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

System

  • Form Factor: 2U Rackmount ,Chassis Model: 2U12L6SW ,Support MB: EP2C602-2TS6/D16 (EEB, 12''x13'')

External Drive Bay

  • Front Side Drive Bay: 12 Bay 3.5''/2.5’’ SAS/SATA HDD (6Gb/s) Hot Swap Bay

Power Supply

  • Output Watts: 650W Redundant Gold

System Fan

  • Front: 80 x 38 mm PWM Hot-Swap Fan x4

MB Physical Status

  • Form Factor: SSI EEB

Processor System

  • CPU: Intel Xeon processor E5-1600*/2600/4600 & v2 series , Socket: Dual Socket R (LGA2011) , Chipset: Intel C602

System Memory

  • Capacity: 16x 240-pin DDR3 DIMM slots , Type: Quad Channel DDR3 memory technology

Storage

  • SATA Controller: Intel C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s (from 2x mini SAS 8087 connector)

Ethernet

  • Interface: 10G /1G /100Mb/s

Management

  • BMC Controller: ASPEED AST2300

Graphics

  • Controller: ASPEED AST2400, VRAM: DDR3 16MB

Internal Connector

  • COM Header: 1 (COM2), Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED) , TPM Header: 1 , Thermal Sensor Header: 1 , IPMB Header: 1 , Buzzer: 1 , Fan Header: 8 x 4-pin , ATX Power: 1 (24-pin) + 2 (8-pin) , USB 2.0 Header: 2 (each support 2 USB 2.0) , Type A USB 2.0 Port: 1 , Front Panel: 1 , Speaker Header: 1 , Dr. Debug with LED: 1 ,

In the Box

  • ASRock Rack 2U12L6SW-2TS6 Server
