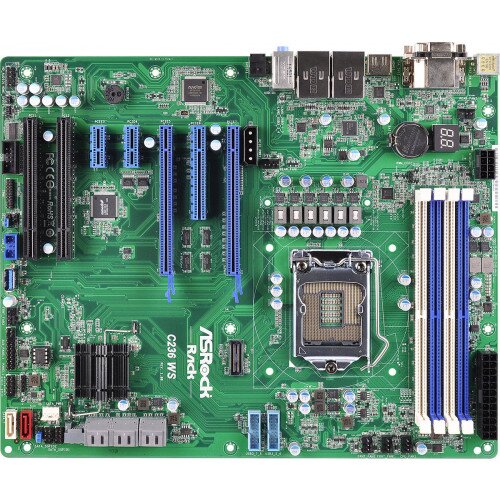

ASRock Rack C236 WS Motherboard
ASRock Rack C236 WS Motherboard Display Gallery Item 1
ASRock Rack C236 WS Motherboard - 2 Display Gallery Item 2

ASRock Rack C236 WS Motherboard Price in Pakistan

By: ASRock Rack

Model: C236 WS

Sku: DOML39S1XF

Be the first to review this product

Sign up for price alert

PKR 48,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Intel Xeon E3-1200 v5/v6 Series Processors
  • Supports Dual channel DDR4 2133 ECC/Non-ECC UDIMM max 64 GB
  • Support 8 SATA3 by C236
  • Supports 2x PCIe 3.0 x16、1x PCIe 3.0 x8、2x PCIe、2xPCI
  • Supports Intel i210*1+Intel i219 1
  • Supports Audio 3 Jack
Quantity:
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Intel Xeon E3-1200 v5/v6 Series Processors
  • Chipset: Intel C236
  • Socket: Single Socket H2 (LGA1155)

System Memory

  • Capacity: 4 x DDR4 DIMM slots
  • Type: Dual Channel memory technology
  • Voltage: 1.2V

Storage

  • SATA Controller: C236: 8 x SATA3 6Gb/s, support RAID 0, 1, 5, 10

Ethernet

  • Interface: 1000 /100 /10 Mbps

Graphics

  • Controller: Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated

    • Internal Connector

    • COM Header: 1
    • SATA DOM: 1
    • SATA Express: 1
    • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED)
    • TR1 Header: 1
    • TPM Header: 1
    • IPMB Header: 1
    • Buzzer: 1
    • Fan Header: 6Fans (CPU/3Front/2Rear)
    • ATX Power: 1x (24-pin) + 1x (8-pin)
    • USB 3.1 (Gen1) Header: 2 ( support 4 USB3.0)
    • USB 2.0 Header: 1 ( support 2 USB3.0)
    • Type A USB 3.1 (Gen1) Port: 1
    • NMI Button: 1
    • Front Panel: 1
    • Speaker Header: 1
    • SGPIO Header: 2
    • Clear CMOS: 1 (short pin)

    Support OS

    • OS: Microsoft Windows / Windows 7 (32 / 64 bit) / Windows 8.1 (64 bit)/ Windows 10 (64 bit)

In the Box

  • ASRock Rack C236 WS Motherboard
