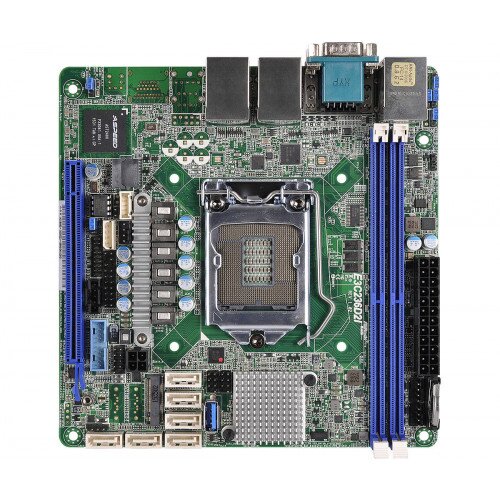

ASRock Rack E3C236D2I Motherboard
ASRock Rack E3C236D2I Motherboard Display Gallery Item 1
ASRock Rack E3C236D2I Motherboard - 2 Display Gallery Item 2
ASRock Rack E3C236D2I Motherboard - 3 Display Gallery Item 3

ASRock Rack E3C236D2I Motherboard Price in Pakistan

By: ASRock Rack

Model: E3C236D2I

Sku: L1F5SSJNHX

Be the first to review this product

Sign up for price alert

PKR 73,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Intel Xeon E3-1200 v5/v6 Series Processors
  • Supports Dual channel DDR4 2133 ECC/NON-ECC UDIMM max 32 GB
  • Support 6 SATA3 by C236
  • Supports 1x PCIe 3.0 x16, 1x M.2 slot
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports Intel i210 1+Intel i219*1
Quantity:
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: Mini ITX

Processor System

  • CPU: Intel Xeon E3-1200 v5/v6 Series Processors
  • Chipset: Intel C236

System Memory

  • Capacity: 2 x DDR4 DIMM slots
  • Type: Dual Channel DDR4 memory technology
  • Voltage: 1.2v

Storage

  • SATA Controller: C236: 6x SATA3 6Gb/s (SATA0 share with M.2 connector), support RAID 0, 1, 5, 10

Ethernet

  • Interface: Gigabit LAN 10/100/1000 Mb/s

Graphics

  • Controller: ASPEED AST2400
  • VRAM: DDR3 16MB (ASPEED)

Internal Connector

  • M.2: 1
  • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED, event log LED)
  • TR1 Header: 1
  • TPM Header: 1
  • IPMB Header: 1
  • Fan Header: 3(CPU/Front/Rear)
  • ATX Power: 1x (24-pin) + 1x (4-pin)
  • USB 3.1 (Gen1) Header: 1 (2 ports)
  • Type A USB 3.1 (Gen1) Port: 1
  • PSU SMB Header: 1
  • NMI Button: 1
  • Speaker Header: 1
  • SGPIO Header: 2
  • PECI: 1
  • PMBUS Mode Jumpers: 3
  • SMBUS from BMC: 1
  • ME/SPS Recovery: 1
  • Clear CMOS: 1 (short pin)
  • PSU SMB Header: 1

Support OS

  • OS: Microsoft Windows / Server 2008 R2 SP1 (64 bit) / Server 2012 (64 bit) / Server 2012 R2 (64 bit)

In the Box

  • ASRock Rack E3C236D2I Motherboard
