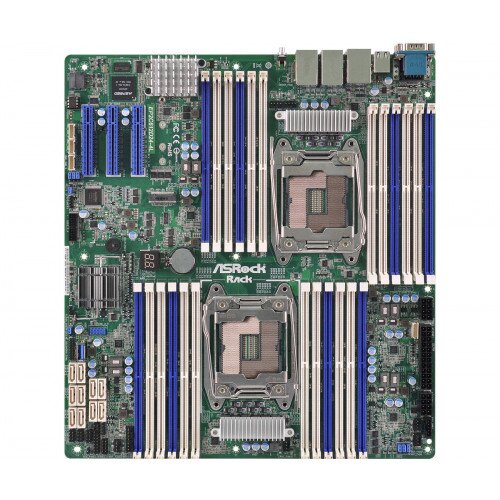

ASRock Rack EP2C612D24-4L Motherboard
ASRock Rack EP2C612D24-4L Motherboard Display Gallery Item 1
ASRock Rack EP2C612D24-4L Motherboard - 2 Display Gallery Item 2
ASRock Rack EP2C612D24-4L Motherboard - 3 Display Gallery Item 3

ASRock Rack EP2C612D24-4L Motherboard Price in Pakistan

By: ASRock Rack

Model: EP2C612D24-4L

Sku: E6J3UBDI40

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600 & v3/v4 series
  • Supports Quad DDR4 2400/2133/1866 R DIMM and LR DIMM, 24 x DIMM
  • Supports 10 x SATA3 6.0 Gb/s by Intel C612
  • Supports 3 PCIe3.0x 8, 1 M.2 slot
  • ASPEED 2400. Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Support 4 x GLAN by Intel i350
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: SSI EEB

Processor System

  • CPU: Intel Xeon processor E5-2600 & v3/v4 series
  • Socket: Dual Socket LGA 2011 R3
  • Chipset: Intel C612

System Memory

  • Capacity: 24 DIMM slots
  • Type: Quad Channel memory technology
  • Voltage: 1.2V

Storage

  • SATA Controller: Intel C612 : 10 x SATA3 6.0 Gb/s (6 x SATA3 + 4 x SSATA3), support RAID 0, 1, 5, 10

Ethernet

  • Interface: 1000 /100 /10 Mbps by Intel i350

Management

  • BMC Controller: ASPEED AST2400
  • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN

Graphics

  • Controller: ASPEED AST2400
  • VRAM: DDR3 16MB

Internal Connector

  • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED, system event LED, and system event LED)
  • TPM Header: 1
  • IPMB Header: 1
  • Fan Header: 2x CPU Fan, 6x system Fan (4-pin)
  • ATX Power: 1 (24-pin) + 2 (8-pin)
  • USB 3.1 (Gen1) Header: 1 ( support 2 USB 3.0 ports)
  • USB 2.0 Header: 1 ( support 2 USB 2.0 ports)
  • Type A USB 3.1 (Gen1) Port: 1

Support OS

  • OS: Microsot Windows / Server 2008 R2 SP1 (64 bit) / Server 2012 (64 bit) / Server 2012 R2 (64 bit) / Server 2016 (64 bit)

In the Box

  • ASRock Rack EP2C612D24-4L Motherboard
