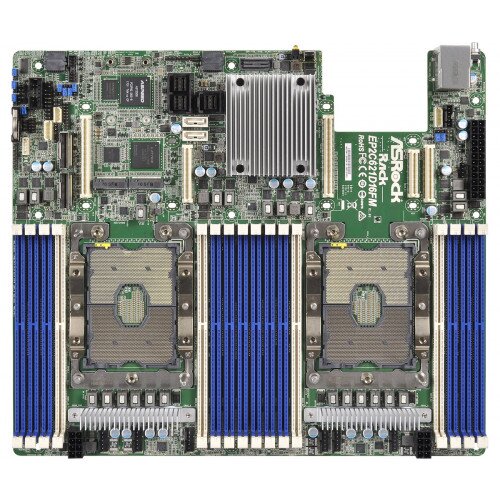

ASRock Rack EP2C621D16FM Motherboard
ASRock Rack EP2C621D16FM Motherboard Display Gallery Item 1
ASRock Rack EP2C621D16FM Motherboard - 2 Display Gallery Item 2
ASRock Rack EP2C621D16FM Motherboard - 3 Display Gallery Item 3

ASRock Rack EP2C621D16FM Motherboard Price in Pakistan

By: ASRock Rack

Model: EP2C621D16FM

Sku: EY7QJ8DKV3

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Intel Xeon Scalable Processors
  • Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  • Supports DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Support 14 SATA3 (12 from 3 x mini SAS connector +2 x M.2 ports from PCH)
  • 2 x USB 3.0 ports
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: SSI CEB

Processor System

  • CPU: Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  • Socket: Dual Socket P, LGA3647
  • Chipset: Intel C621

System Memory

  • Capacity: 16 x 288-pin DDR4 DIMM slots
  • Type: Six Channel DDR4 memory technology
  • Voltage: 1.2V

    • Storage

    • SATA Controller: Intel C621 :14 x SATA3 6.0 Gb/s (12 from 3 x mini SAS connector + 2 x SATA connector or 2 x M.2 from PCH)

    Management

    • BMC Controller: ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with ikvm、vMedia support
    • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management LAN

    Graphics

    • Controller: ASPEED AST2500
    • VRAM: DDR4L 256Mb

    Internal Connector

    • SATA DOM: 1
    • M.2: 1 (up to 2280)
    • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED)
    • TPM Header: 1
    • IPMB Header: 1
    • Fan Header: 6 x System Fans (6-pin)
    • ATX Power: 1x (24-pin) + 2x (8-pin)
    • Type A USB 3.1 (Gen1) Port: 1
    • Front VGA Panel: 1

    Support OS

    • OS: Microsoft Windows (Server OS) / Server 2012 R2 (64 bit) / Server 2016 (64 bit)

In the Box

  • ASRock Rack EP2C621D16FM Motherboard
