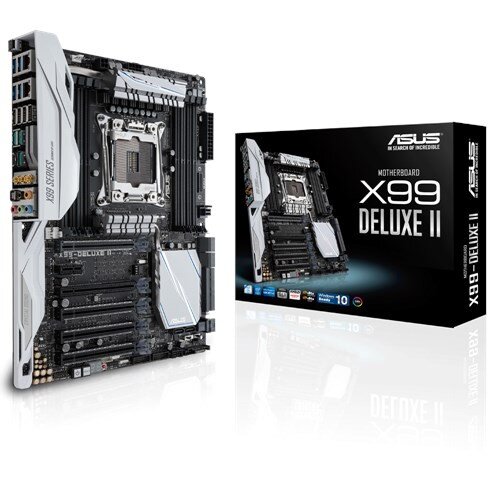

Let loose up to 10 cores with new Intel Core i7 processors for socket LGA 2011-v3, in both 28- and 40-lane options - and awaken the true multi-threaded performance! X99-Deluxe II is engineered from the group up to squeeze every last drop of power from Intel's latest architecture, so you'll always be one step ahead!
Designed to break performance barriers, ASUS OC Socket utilizes extra pins to connect a proprietary circuit to contacts found on land grid array (LGA). Combined with our customized UEFI, this exclusive feature enables higher DDR4 memory frequencies, lower latencies and enhanced stability while overclocking, extending all the way to extreme overclocking conditions, such as liquid nitrogen (LN2). OC Socket is 100% compatible with all LGA 2011-v3 CPUs, ensuring the ideal combination of overclocking performance and compatibility.
The extra 4-pin power plug shares current with the standard 8-pin power connector to balance loads and provide ample margin to overclock Intel's latest CPUs to the limit.
The cache bus links areas such as CPU cores, DDR4 memory controllers, system agent and the shared L3 cache - so it’s a critical interconnect for the whole CPU subsystem. A higher cache-bus frequency directly accelerates subsystem performance, so ASUS OC Socket exclusively provides an adjustable cache-bus voltage to reach higher cache bus frequencies.
Drive your memory frequencies to 3333MHz and beyond! ASUS-exclusive T-Topology circuit design plus OC Socket provides a superb memory-overclocking capability to unleash the full power of DDR4 by minimizing coupling noise and signal reflection. With innovative equidistant memory channels, it delivers the most balanced control and powerful overclocking compatibility. ASUS works with almost every DDR4 memory vendor to ensure the best compatibility.
One click takes care of all that complex tuning. Your PC is smart with ASUS 5-Way Optimization. It dynamically optimizes essential aspects of your system based on real-time use - so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and now even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
The latest ASUS X99 motherboards feature the most advanced cooling capability to date, controllable from both Fan Xpert 4 and UEFI.
Plug in up to three extra fans for a maximum of nine fans (including two CPU fans and seven case fans), each with independent control from either UEFI BIOS or AI Suite 3. Each fan can be up to 12W. It is ideal for water-cooled or extreme airflow under high-performance systems.
With a low-profile design that promotes the best-ever airflow to adjacent expansion cards, fit the PCI Express x4 add-in card to any slot that suits your PC build and pump M.2 performance up to a blistering 32Gbit/s - for unmatched performance. And upgrade without limitations, as any M.2 card between 30mm (2230) to full-length 110mm (22110) is supported.
3x3 dual band 2.4/5GHz antennas included. 802.11ac* Wi-Fi up to 1300Mbps** transfer speed.
ASUS ThunderboltEX 3 is an Intel-certified Thunderbolt 3 add-on card included with the X99-Deluxe II to enable breathtaking bi-directional speeds up to 40Gbps - four-times faster than other PC data-transfer cables with twice the video bandwidth for the latest 60 Hz 4K/UHD displays. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type C reversible connector for compatibility with the latest USB 3.1 Type-C devices and supports the USB Power Delivery specification for fast, high-power charging of up to 36W.
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
Update the latest BIOS via the internet, and from within the BIOS.
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they’re about to fail.
Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!
Quickly find tuning options and add preferred tools to the list.
Fine-tune individual fans simply by dragging a curve with the mouse.
Improve your DRAM performance with a click.
View SATA port details for easy device recognition.
Use mouse controls to change the time and date.
Recommendation for multi-VGA configuration and detailed information for selected ASUS graphics cards .
Restore your SSDs to factory-fresh condition.
Track last change and save preferred profiles onto a USB drive.
Rename SATA ports for easy identification.
Customize your favorite RGB LED style direct from the BIOS.
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB control with a variety of functional presets for both built-in RGB LEDs, as well as LED strips connected to the onboard 4-pin RGB headers. Future software updates will allow the onboard lighting to be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
X99-Deluxe II features the very latest Intel Ethernet for faster, smoother gaming - always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and intuitive user interface. It allows you to lower lag with no expert knowledge - by up to 1.45X! If you're a tweaker, use Advanced Mode for hardcore controls.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
With USB 3.1 Type-A ports , which is completely backward-compatible with your existing USB devices, and reversible USB 3.1 Type-C for the very fastest USB data transfers, you'll experience data-transfer speeds of up to 10Gbps - or twice as fast USB 3.0. And you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!
Unlock the full potential of your storage with NVM Express (NVMe), the revolutionary specification that lets your SSDs scream at top speed. Just attach your drive to the built-in U.2 connector with plug-and-play ease to experience data-transfer speeds of up to 32Gbps - and free up a PCIe slot for another expansion card!
Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbps connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard - and ensures that you and your system won't get left behind.
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
X99-Deluxe II has the ASUS-exclusive CPU-installation tool to prevent pin damage. Just pop the latest Intel Core i7 X -series (LGA 2011-v3) processor into the tool, and then insert the package into the CPU socket. Close the latches and you’re good to go!
Your computer is running slow? PC Cleaner sweeps out unused and unwanted files and programs that take up space in your storage drives, eliminating the clog. It also accelerates PC start-up with a click!
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out - couldn't be simpler!
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!
You no longer need to worry about which front-panel wire goes where. Just pop the wires into Q-Connector's one-piece plug and you’re good to go.
Unlike other I/O shields, with their sharp edges, the exclusive Q-Shield is soft and pliable to protect your hands from cuts.
Q-LED indicates problems with the CPU, memory, graphics card or boot device, so you can quickly diagnose and remedy any issues - and wave goodbye to endless frustrations!
Instantly recognizes and displays the POST status for precise troubleshooting. Just check the code in the user guide to solve your problem.
This motherboard supports Intel Core i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
The Intel X99 Chipset is a single-chipset design that supports new Intel Core i7 processor family for socket LGA 2011-v3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
