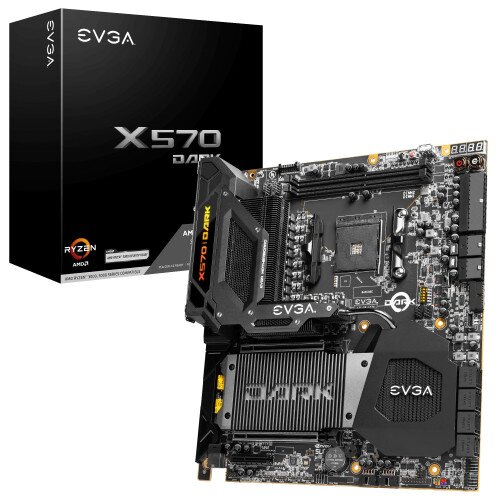

EVGA X570 DARK AMD Motherboard
EVGA X570 DARK AMD Motherboard Display Gallery Item 1
EVGA X570 DARK AMD Motherboard - 2 Display Gallery Item 2
EVGA X570 DARK AMD Motherboard - 3 Display Gallery Item 3
EVGA X570 DARK AMD Motherboard - 4 Display Gallery Item 4
EVGA X570 DARK AMD Motherboard - 5 Display Gallery Item 5
EVGA X570 DARK AMD Motherboard - 6 Display Gallery Item 6
EVGA X570 DARK AMD Motherboard - 7 Display Gallery Item 7

EVGA X570 DARK AMD Motherboard

By: EVGA

Model: X570 DARK

Sku: 1XNBYVXA65

Be the first to review this product

Sign up for price alert

PKR 208,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Chipset: AMD X570
  • SLI: 2-Way SLI
  • SATA: 8 Native SATA 6 Gb/s Ports
  • RAID: 0, 1, 10
  • USB: USB 2.0 (2 Internal Headers + SPI to USB Type-A)
  • Memory Support: 2 DIMM Dual-Channel (up to 64GB) DDR4 4800MHz+
  • Capacitors: 100% Solid State
  • Ethernet; 2x Intel 2.5 Gigabit NIC
  • Audio: Realtek ALC1220 7.1 Channel HD Audio + SV3H615
  • Fan Headers: 8 (2x 3A Pump 2x CPU PWM, 4x PWM/DC)
  • PCB: 10 Layers
  • PCI-E Slot Arrangement: 2x16, 1x4
  • NVMe Support: Yes (2x PCIe Gen4 + PCIe + SATA)
  • Form Factor: E-ATX Form Factor,
  • Operating System Support: Windows 10 64bit
Quantity:
  • Add to Wishlist
  • Add to Compare

X570 DARK

  • 17-Phase Digital VRM
  • AM4 CPU Socket
  • PCle Gen 4.0 x16 / NVIDIA SLI
  • Gen 4.0 M.2 Key-M Slots
  • 2x ARGB / 2x RGB Headers
  • USB BIOS Update Port
  • 2x DDR4 DIMMs
  • Pump Headers
  • Supplemental PCIe 6-Pin Power
  • ProbeIt Header
  • PCIe Disable Switches
  • Slow Mode Switch
  • BIOS Select Switch
  • Right-Angle Power Connectors
  • Multi-Function POST Indicators
  • PCIe Gen 4.0 x4 slot

Extraordinary Performance by Ryzen Processors

  • DDR4, 4800MHz+(OC), DIMM SupportNative PCIe Gen 4.0, x16 Slots andGen 4.0 M.2 Slots, NVIDIA SLI Ready, with AMD SenseMI, Technology, Supports,NVIDIA, Resizable BAR

Upgraded Cooling Solution

  • Heatsink with Twin Fans, 90° Rotated CPU Socket and Memory Slots
  • 90° Rotated CPU Socket and Memory Slots

Components

  • 17-Power Phase Design
  • Probelt Header
  • Multi-Function POST Indicators
  • EVGA Wi-Fi Antenna
  • Dual Intel 2.5GbE NICs
  • Right-Angle Connectors

Features

  • 150 Increased Socket Gold Content
  • 2-Way SLI Support
  • Built for EVGA ELEET X1
  • EVGA ELEET X1 Software Support
  • EVGA Probe-It Connector
  • EVGA's Latest GUI BIOS Featuring OC Robot and In-BIOS Stress Testing
  • Highly-Efficient 17 Phase Digital VRM
  • New Integrated EVGA Wireless Module with Intel Dual-band WiFi 6 / BT5.2 with external antenna
  • Onboard ARGB and RGB Headers controlled through EVGA ELEET X1
  • Onboard Clear CMOS, Power and Reset Buttons
  • Onboard Temperature and Voltage Monitoring
  • PCI Express Gen 4
  • PCIe Disable Switches
  • Realtek 7.1 Channel HD Audio + EVGA NU Audio

In the Box

  • EVGA X570 DARK AMD Motherboard
  • 2 x SATA 6Gb/s Data Cables
  • M.2 Thermal Pads
  • M.2 Screw Kit
  • EVGA Wi-Fi/BT Antenna
  • USB Flash drive with driver and manual
  • EVGA Quick Installation Guide
