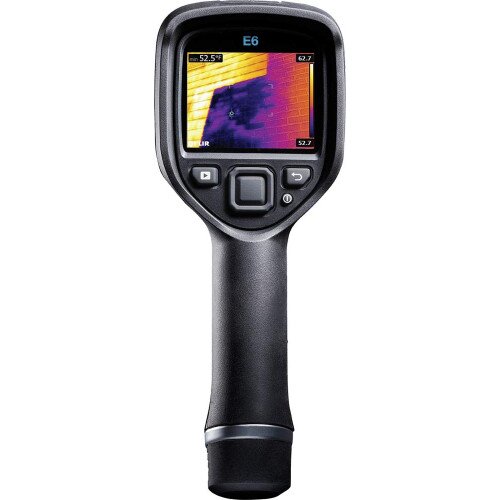

FLIR E6-XT Infrared Camera With Extended Temperature Range
FLIR E6-XT Infrared Camera With Extended Temperature Range Display Gallery Item 1
FLIR E6-XT Infrared Camera With Extended Temperature Range - 2 Display Gallery Item 2
FLIR E6-XT Infrared Camera With Extended Temperature Range - 3 Display Gallery Item 3
FLIR E6-XT Infrared Camera With Extended Temperature Range - 4 Display Gallery Item 4
FLIR E6-XT Infrared Camera With Extended Temperature Range - 5 Display Gallery Item 5
FLIR E6-XT Infrared Camera With Extended Temperature Range - 6 Display Gallery Item 6

FLIR E6-XT Infrared Camera With Extended Temperature Range - Shop Now!

By: FLIR

Model: 63907-0804

Sku: 2RV50EB19W

Be the first to review this product

Sign up for price alert

PKR 983,399

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
  • Detector Type: Uncooled microbolometer
  • Field of view (FOV): 45° × 34°
  • IR Resolution: 240 × 180 pixels
  • Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
  • Object Temperature Range: –20°C to 550°C (-4°F to 1022°F) in two ranges
  • Thermal Sensitivity/NETD: (0.06°C (0.11°F) / (60 mK
  • AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera
  • Interface: USB Micro: Data transfer to and from PC and Mac device
  • WiFi: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
  • EMC: •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
  • Humidity (Operating and Storage)IEC 60068-2-30/24 h 95% relative humidity
  • Operating Temperature Range: –15°C to 50°C (+5°F to 122°F)
  • Radio Spectrum: •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
  • Shock: 25 g (IEC 60068-2-27)
  • Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)
  • Vibration: 2 g (IEC 60068-2-6)
  • Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0
  • Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)
  • Color palettes: Black & white, iron, and rainbow
  • Image Adjustment: Automatic adjust/lock image
  • Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
  • Picture-in-Picture: IR area on visual image
  • Reflected apparent temperature correction: Automatic, based on input of reflected temperature
  • Spot Meter: Center spot; box with min./max.
  • Spotmeter and Area: Center spot; box with min./max.
  • Display: 3.0 in. 320 × 240 color LCD
  • Charging system: Battery is charged inside the camera or in specific charger.
  • Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
  • Power Management: Automatic shut-down
  • Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
Quantity:
  • Add to Wishlist
  • Add to Compare

FLIR E6-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 43.200 (240 × 180) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools Mobile app for sharing images and sending reports easily from any location.

Affordable, Professional Thermal Imaging

SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E6-XT has an IP54 enclosure and easily withstands a 2-meter drop test

In the Box

  • FLIR E6-XT Infrared Camera With Extended Temperature Range
  • Hard Transport Case
  • Battery
  • USB Cable
  • Power supply/charger with EU, UK, US, and Australian plugs
