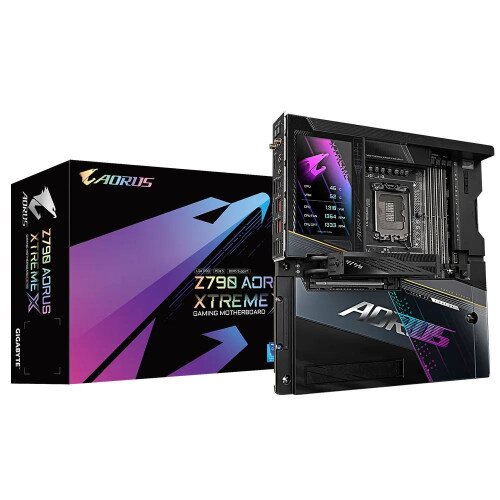

Gigabyte Z790 AORUS XTREME X Motherboard Price in Pakistan

By: Gigabyte

Model: Z790 AORUS XTREME X

Sku: GLMLDQ58UF

Availability: Out of stock New

Availability: Out of stock

  • CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors, L3 cache varies with CPU, * Please refer to "CPU Support List" for more information.
  • Chipset: Intel Z790 Express Chipset
  • Memory: Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output), Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.), * Support for DisplayPort 1.4 version and HDCP 2.3/ (Graphics specifications may vary depending on CPU support.
  • Audio: 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips, DTS Sound Unbound, High Definition Audio, 2-channel, Support for S/PDIF Out/ * The line out jack and the optical S/PDIF out connector can only be used one at a time.
  • LAN: Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1), Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
  • Wireless Communication module: Qualcomm Wi-Fi 7 QCNCM865: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11be 320MHz wireless standard/ * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16), The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector, For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot/ Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
  • Storage Interface: CPU: M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU), M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)/ Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB), M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB), 4 x SATA 6Gb/s connectors/ RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB: Chipset+Intel Thunderbolt 4 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support/ Chipset: 2 x USB Type-C ports with USB 3.2 Gen 2x2 support, available through the internal USB header, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel/ Chipset+2 USB 3.2 Gen 2 Hubs: 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel/ Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers/ Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors: 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, CPU fan header, CPU fan/water cooling pump header, system fan header, system fan extension cable header (can extend three system fan headers through one cable), system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable), noise detection header, integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable), 4 x SATA 6Gb/s connectors, 5 x M.2 Socket 3 connectors, front panel header, 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 1 headers, integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable), 2 x temperature sensor headers, power button, reset button, Clear CMOS button
  • Back Panel Connectors: Q-Flash Plus button, OC Ignition button, 2 x SMA antenna connectors (2T2R), 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support), 10 x USB 3.2 Gen 2 Type-A ports (red), 2 x RJ-45 ports, optical S/PDIF Out connector, 2 x audio jacks/ * The mic in jack supports only mono microphone input
  • I/O Controller: iTE I/O Controller Chip
  • H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control/ * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install/ Noise detection
  • BIOS: 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features: Support for GIGABYTE Control Center (GCC)/ Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications, Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup
  • Bundled Software: Norton Internet Security (OEM version), LAN bandwidth management software
  • Operating System: Support for Windows 11 64-bit
  • Form Factor: E-ATX Form Factor; 30.5cm x 28.5cm

Show more (15)

Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Memory Xceed in DDR5 performance

AORUS is committed to enabling the unparalleled next-gen performance. That is why every Z790 AORUS XTREME X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Best-in-class Compatibility

DDR5 Overclocking Up to

8266 MT/s

*Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 XMP Booster

one click to auto boost your DDR5 module by the highest profile

DDR5 Auto Booster

one click to boost native DDR5-5600 to 6000

High Bandwidth

one click to increase DDR5 bandwidth

Low Latency

one click to shorten DDR5 latency

XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

Hardware Craftsmanship

Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.

Robust VRM Design Xtraordinary power delivery

The Z790 AORUS XTREME X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Digital Twin VRM Design

* 12+12 phases parallel power design

24 VCORE Phases 105A SPS

to unleash full potential of multi-cores CPU performance

1 VCCGT Phase 105A SPS

for CPU integrated GPU performance

2 VCCAUX Phases

Provide stable power for CPU integrated PCIe & Memory controller

Efficient Overall Thermal Xpress your cool

Every Z790 AORUS XTREME X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

VRM Thermal Armor Fins-Array

These solid heatsinks are forged to keep your system cool.

M.2 Thermal Guard XTREME

with M.2 Thermal Guard Backplate

* Test results are for reference only and may vary in different circumstances.

50X

more heat dissipation surface than conventional heatsink

50°C

cooling down temperature when Running Gen 5 SSD at full speed

Small Vents, Big Cooling Power

* Test results are for reference only and may vary in different circumstances.

Up To 7°C

lower temperature

M.2 Thermal Guard Ext.

with M.2 Thermal Guard Backplate

4x M.2

slots coverage

Smart Fan6

Cool. Quiet. Customized.

DIY-friendly Innovations Xpeditious building process

Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS XTREME X motherboard the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

Quick Control Elements

Reset, Update, Innovate

PCB Crafting Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

8-Layer PCB

Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

56% Lower Dissipation Factor

Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.

Ultra Durable Xpect everything UD

GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS XTREME X motherboard is built to last longer and stand stronger.

Connectivity Xtensively versatile

The Z790 AORUS XTREME X motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 7 support with a redesigned antenna, to an array of USB ports.

Dual Thunderbolt 4 Compatible USB4

Boasts 40Gb/s speed, supports DisplayPort 1.4a, and enables connection of up to 10 devices, including 4K/8K displays, all while providing charging capabilities.

Intuitive Customization

Xplore infinite utilities

The Z790 AORUS XTREME X motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways.

UC BIOS

Redesigned as user-centered and provides intuitive performance tweakers.

Redesigned UI and UX

an intuitive operation interface with an aesthetically pleasing design

Quick Access

9 customizable option slots for effortless access in Easy Mode

PerfDrive

exclusive BIOS settings that optimize the performance based on the cooling configuration

Partnership

introduces innovative features for computer enthusiasts and professionals

GIGABYTE Control Center

A unified software platform across a variety of GIGABYTE products.

RGB Fusion

customize the RGB lighting on the motherboard or devices that connect to it.

In the Box

  • Gigabyte Z790 AORUS XTREME X Motherboard
