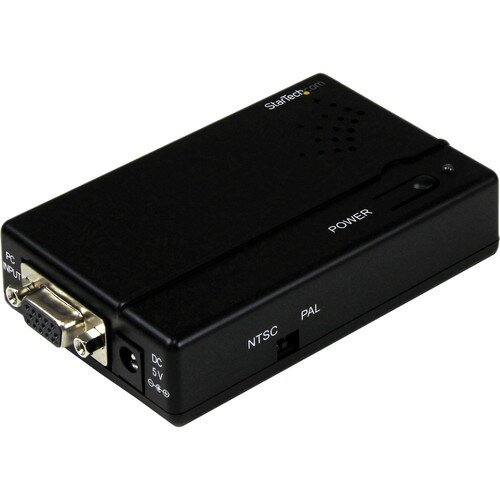

StarTech High Resolution VGA to Composite RCA or S-Video Converter

By: StarTech

Model: VGA2VID

Sku: 2PJEF5G8T0

PKR 64,599

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Connector: VGA (15 pin, High Density D-Sub), S-Video (4 pin, Mini-DIN), Composite Video (1 x RCA)
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Chipset ID: Mstar - MST3541-LF, Analog Devices - ADV 7610
  • Supported Resolutions: PC Input - Up to 1600x1200 @ 60Hz Output - 640x480
  • Input Voltage: 100 - 240 AC
  • Input Current: 0.6 A
  • Output Voltage: 5 DC
  • Output Current: 2.6 A
  • Power Consumption (In Watts): 13
Quantity:
  • Add to Wishlist
  • Add to Compare

This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.

The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.

An inexpensive way to increase the size of a computer display

Displays computer screen images on your TV

Great for boardroom meetings, tradeshows, lectures, and CRT digital signage solutions

Pure hardware design provides an easy to use and install solution

Automatic detection the scan rate and resolution of the incoming graphic signals without the use of software saves time and hassle

With support for high resolutions and automatic scaling there is no need to lower resolution settings on your PC

  • High resolution inputs from your PC up to 1600x1200
  • Provides output in both composite and S-Video formats
  • Supports NTSC and PAL compatible displays
  • Image underscan and overscan selectable switch

In the Box

  • StarTech High Resolution VGA to Composite RCA or S-Video Converter
  • AC Adapter
  • User Manual
